Arcade Game 2in1 JAMMA Switcher PCB Remote

You can NOW PLUG 2 DIFFERENT JAMMA PCB into one cabinet and select the game you want to play with the press of a switch control. To install JUST PLUG the PCB into your existing JAMMA Harness. It install easily and works perfectly.

Install two different JAMMA (or non - JAMMA with the use of a JAMMA Adaptor) PCBs into a single JAMMA cabinet with ease! This 2 in 1 Multi JAMMA switcher board is simple to install and works with just a quick press of the button. Included is a wired switch function.

This 2 in 1 MultiJAMMA Switcher board operates differently than the larger 6 in 1 MultiJAMMA Switcher board. First, both slots (1 and 2) are simultaneously powered on together unlike the 6 in 1 switch will only power on a single slot at once. This provides seamless quick switching between the two installed boards. A most if installing in a public game room (so the customer does not have to wait for the second game board to power on and test itself it selected… the game would already be up and ready to go.)

Features:

Multiple input options (Inputs through JAMMA slots, VGA connections, RGB-S Connections, and L/R Audio inputs)
On initial power up, slot 1 automatically is enabled and plays.
Both slots power on together
Switcher routes 5VDC, 12VDC, and -5VDC
Switcher routes SERVICE & TEST button functions, plus up to 4 shooter buttons per player
Setup is quick and easy
Designed to install 2 different JAMMA (or non-JAMMA with the use of JAMMA Adapter) PCBs into a JAMMA cabinet.
Allow you to plug 2 different JAMMA PCB into one cabinet and select the game to play with the switch control.

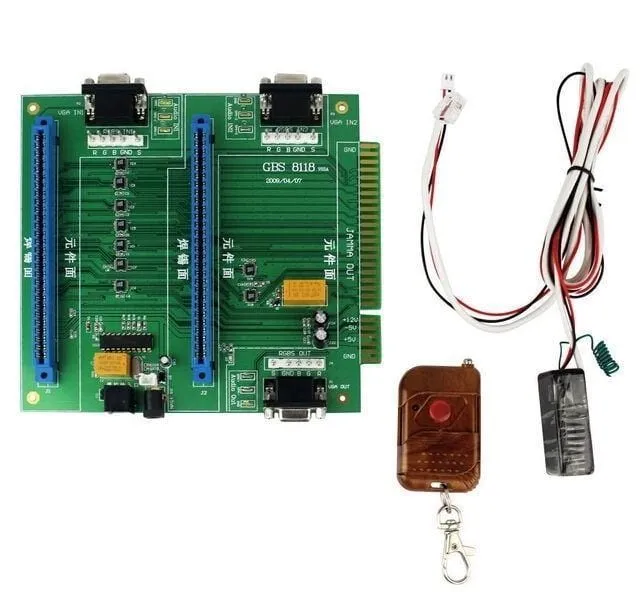

JAMMA PCB includes:

1 x 2-in-1 MultiJAMMA Switcher PCB
1 x Remote Control
1 x Remote Receiver

Setup Introduction:

Install the 2-in-1 MultiJAMMA Switcher PCB into your JAMMA ready arcade cabinet (on cabinet floor is ideal if possible)
Connect the 2-in-1 MultiJAMMA Switcher PCB into your JAMMA cabinets connector
Install your other JAMMA PCB (or non-JAMMA PCB with the use of a JAMMA Adapter) into one of the open 2-in-1 MultiJAMMA
Switcher PCB slots (Slot farthest from the JAMMA connection is slot 1 / closest is slot 2). When plugging in the Jamma boards the front of the board (Front has the monitor port on it) goes to the front of the switch, the front of the switch has the two VGA input ports.
Power on your cabinet and enjoy
