Kent-Moore J-46624 Support Solid Seal Installer

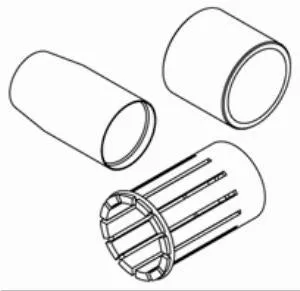

For General Motors. This three piece tool is used to install and compress the solid Teflon seals in the 6T70 transaxle without damage to the seal ring edges. J-46624-3 is a cone shaped protector that keeps the seal inner surface from contacting the sharp edges of the transfer drive gear support ring grooves during installation. J-46624-2 pushes each seal down over the input shaft and allows the seal to drop into its respective ring groove. Once the solid seals are installed, the J-46624-1 Sizer compresses the seals so the transfer drive gear will fit over the seals during reassembly without damaging them.
