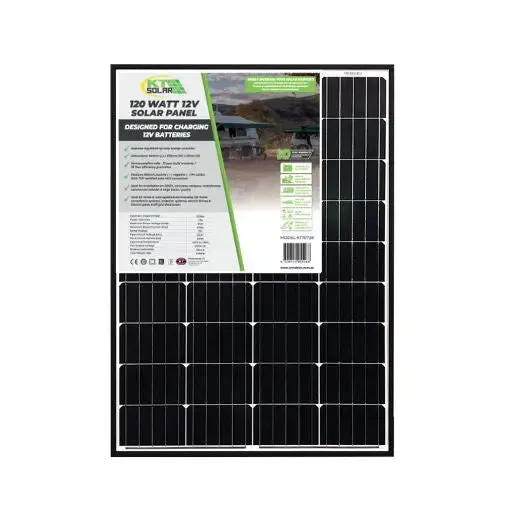

Solar Panel 120 Watt Mono 12V
- Dimensions (Height): 945mm
- Dimensions (Length): 670mm
- Dimensions (Depth): 35mm
- Panel Weight: 6.90Kg
Features:
- Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats and yachts
- Ideal for home and rural applications including 12V home surveillance systems, irrigation systems, electric fences/gates and off-grid shed power
- Requires regulation by solar charge controller
- Direct connection to batteries with 90mm PV cables with positive ( ) and negative (-) TUV certified connectors
| Power Tolerance | 3% |
| Maximum Power (Pmax) | 120Wp |
| Maximum Power Voltage (Vmp) | 19.0V |
| Maximum Power Current (Imp) | 6.32A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 22.5V |
| Short Circuit Current (Isc) | 6.97A |
| Operating Temperature | -40°C to 85°C |
| Product Application | Class A |
| Max System Voltage | 1000V DC |
KT70728
