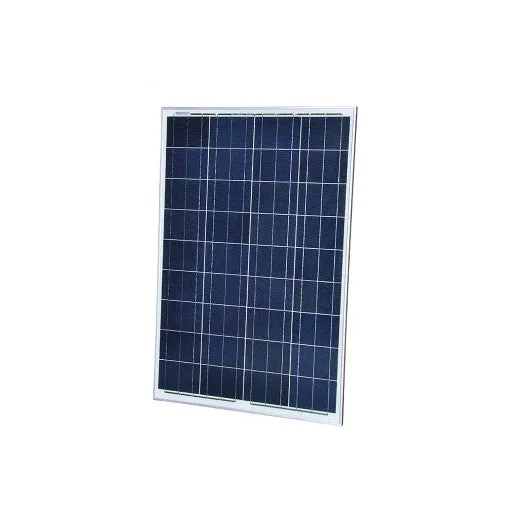

Victron 12V 115W Poly Solar Panel
we consider victron panels to be our premium panels, super high quality with very reliable outputs.
1015MM x 668MM x 30MM (LxWxH) • SERIES 4A • POLYCRYSTALLINE WITH SILVER FRAME
*Note the Victron 12V range of solar panels are suitable for charging 12V battery systems when using a PWM or MPPT controller. The Victron range of SmartSolar regulators would be best suited based on price and quality.
Features:
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25-Year limited warranty on power output and performance.
- 5-Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Pre wired quick-connect system with PV-ST01 connectors.
- Cell type Polycrystalline
- Number of cells in series 36
- Nominal power (Watts) 115W
- Open Circuit Voltage (Volts) 22.73V
- Maximum Power Voltage (Volts) 18.94V
- Short Circuit Current (Amps) 6.56A
- Maximum Power Current (Amps) 6.08A
- Power (Max.) 115W
- Temp Range -40 to 85°C
- Length of cable / connector 900mm / MC4
- Power Tolerance ±3%
- Maximum system voltage 1000V
- Size (LxWxH) 1015mm x 668mm x 30mm
- Weight 8kg
- Warranty - Electrical performance
