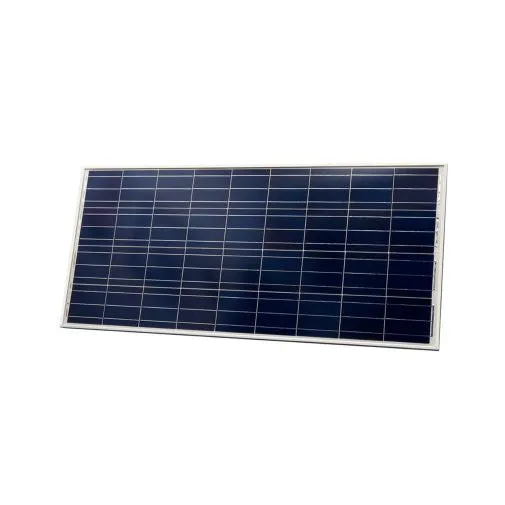

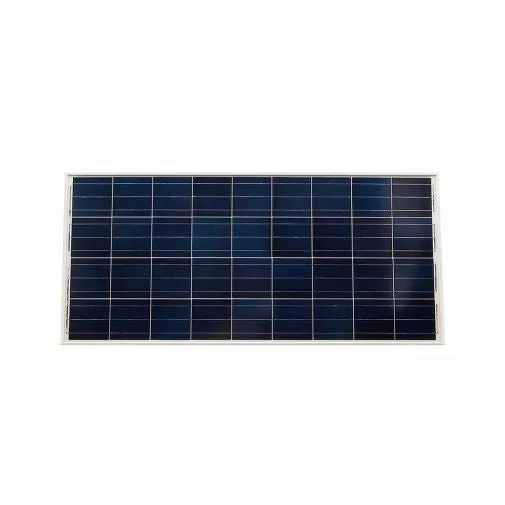

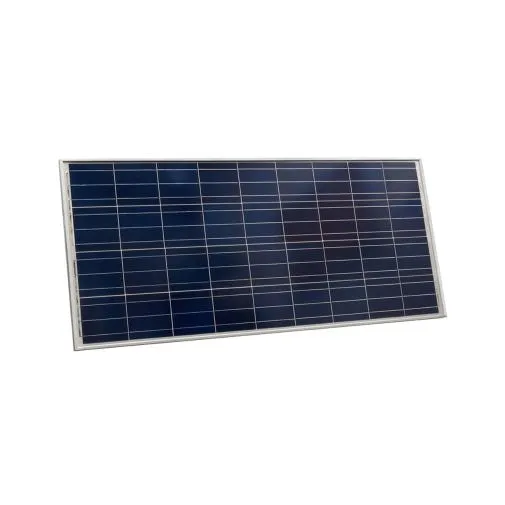

VICTRON 12V 175W POLY SOLAR PANEL
1485MM x 668MM x30MM (LxWxH) • SERIES 4A • POLYCRYSTALLINE WITH SILVER FRAME
- Low voltage-temperature coefficient enhances high-temperature operation.
- Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
- 25-Year limited warranty on power output and performance.
- 5-Year Limited warranty on materials and workmanship.
- Sealed, waterproof, multifunctional junction box gives high level of safety.
- High performance bypass diodes minimize the power drop caused by shade.
- Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
- A sturdy, anodized aluminum frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
- Pre Wired quick-connect system with PV- ST01 connectors
- Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
- Cell type Polycrystalline
- Number of cells in series 36
- Nominal power (Watts) 175W
- Open Circuit Voltage (Volts) 21.9V
- Maximum Power Voltage (Volts) 18.3V
- Short Circuit Current (Amps)10.24A
- Maximum Power Current (Amps) 9.56A
- Power (Max.) 175W
- Temp Range -40 to 85°C
- Length of cable / connector 900mm / MC4
- Power Tolerance ±3%
- Maximum system voltage1000V
- Size (LxWxH) 1485mm x 668mm x 30mm
- Weight 12kg
- Warranty Electrical performance
